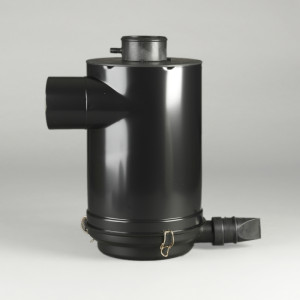

Filtr vzduchový - Housing; G100284

Donaldson

AIR CLEANER, FRG RADIALSEAL

Attributes
Inlet Diameter 114 mm (4.49 inch)
Outlet Diameter 101 mm (3.98 inch)
Body Diameter Maximum 259 mm (10.20 inch)
Body Length 358.5 mm (14.11 inch)
Overall Length 482 mm (18.98 inch)
Rated Flow LR 8.6 m3/min (304 cfm)
Rated Flow MR 11 m3/min (388 cfm)
Rated Flow HR 16 m3/min (565 cfm)
Restriction LR 100 mm H2O (3.94 inch H2O)
Restriction MR 200 mm H2O (7.87 inch H2O)
Restriction HR 300 mm H2O (11.81 inch H2O)
Style Radialseal
Family FRG
Packaged Dimensions
Packaged Length 0.453 m (18.11 inch)
Packaged Width 0.295 m (11.81 inch)
Packaged Height 0.601 m (24.02 inch)
Packaged Weight 6.295 kg (13.88 lb)
Packaged Volume 0.083 m3 (2.97 ft3)
Other Information

HTS Code 8421310090
UPC Code 742330130698
