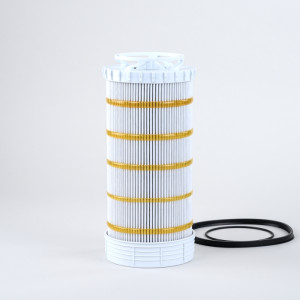

Filtr olejový hydr. vložka; P767446

Donaldson

HYDRAULIC FILTER, CARTRIDGE

Attributes
Outer Diameter 146.7 mm (5.78 inch)
Inner Diameter 81 mm (3.19 inch)
Overall Length 322.5 mm (12.70 inch)
Efficiency Beta 200 21 micron
Efficiency Beta 1000 32 micron
Efficiency Test Std ISO 16889
Bypass Valve Yes
BypassValve Setting LR 0.7 bar (10 psi)
Collapse Burst 5 bar (73 psi)
Style Cartridge
Media Type Synthetic
Primary Application CNH 47617642
Packaged Dimensions
Packaged Length 0.148 m (5.91 inch)
Packaged Width 0.148 m (5.91 inch)
Packaged Height 0.354 m (14.17 inch)
Packaged Weight 0.635 kg (1.40 lb)
Packaged Volume 0.008 m3 (0.29 ft3)
Other Information
Country of Origin Italy
NMFC Code 069100-05
HTS Code 8421298090
UPC Code 742330989425

Cross Reference

Manufacturer Name Manufacturer Part
CASE/CASE IH 47617642
CASE/CASE IH 47617638
NEW HOLLAND 73325013
NEW HOLLAND 87708150
NEW HOLLAND 47617642
NEW HOLLAND 47617638
